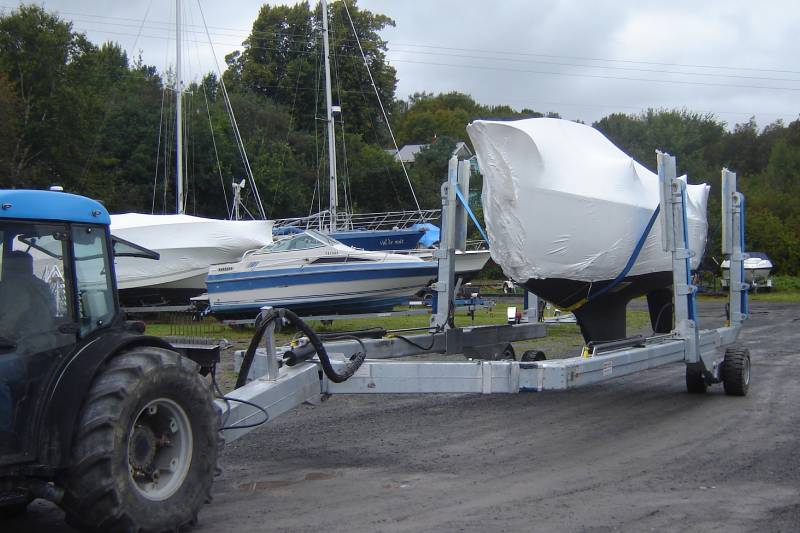

SL-20Sling Lift Trailer
SPECS
| LOAD CAPACITY | 40,000 LBS |
|---|---|
| POWER (UP TO) | 46' |
| SAIL (UP TO) | 48' |
| A | 150" - 204" |
| B | 120" - 143" |
| C | 89" - 143" |
| D | 35' |
| E | 25' 3" |
| F | 38' |
- Custom colour choice – 189 colors to choose from
- Hitch with 5′ hydraulic extending pintle ring
- Self-propelled power unit
-
Salt water package – consisting of :
- Hot-dipped galvanized frame and components
- Stainless steel hose ends and fittings, hydraulic cylinder shafts
FEATURES
- 10″ x 10″ x .500″ HSS steel tube frame
- Hydraulic expanding width frame
- expands from 10′ to 14’6″ inside of slings
- expands from 89″ to 143″ inside of tires
- Hydraulic tongue with 5′ extending(manual) pintle ring
- Hydraulic lift:
- wheel and tongue lift with frame heights to 58″
- Sling lift of an additional 36″ of lift
- Hydraulic Power
- 9 HP Honda with electric start and 2 stage pump
- 10 gallon hydraulic reservoir
- Wireless radio remote control
- Pilot operated safety lock-valves on all lift functions
- 4 hydraulic sling posts with 36″ of lift each
- Front sling has hydraulic adjustment fore and aft 10′ to 16′ on centers
- 2 center-disconnect slings with hull protector pads
- 28″ premium solid wide-trac Titan tires (outside)
- 22″ premium solid wide-trac Titan tires (inside)
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 2 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
