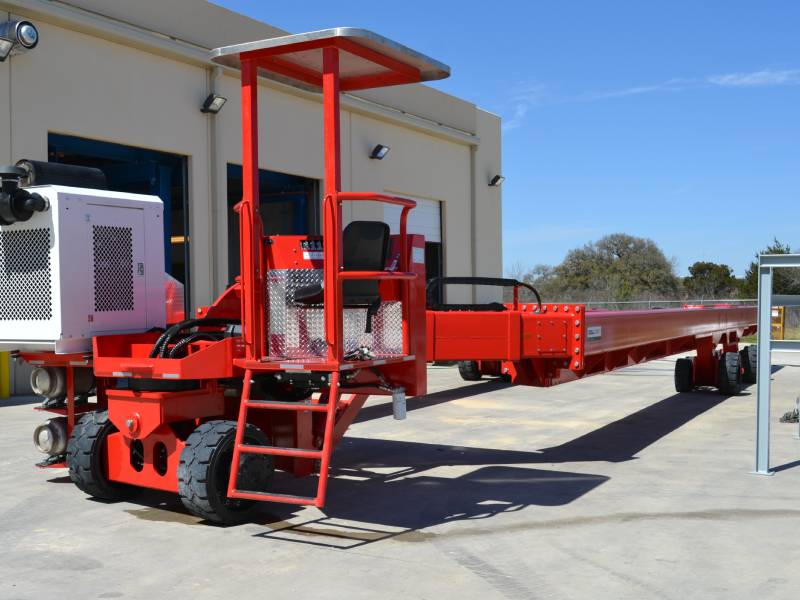

SP-80
Self-Propelled Yard Trailer
SPECS
| LOAD CAPACITY | 160,000 LBS |
|---|---|
| BOAT LENGTH | 30' - 80' |
| TRAVEL SPEED | 0 - 6 MPH |
| GRADE CAPABILITY | 6% |
| A | 159" - 189" |
| B | 97" - 127" |
| C | 30" - 64" |
| D | 14' 7" |
| E | 43' 4" |
| F | 72' 8" |
Optional Equipment
- Custom colour choice – 189 colors to choose from
- Wireless remote control
- Stainless steel hose ends & fittings package
- Hot dip galvanized frame and hubs
- Rear wheel drive assist
FEATURES
- 16″ x 16″ x .500″ HSS steel tube frame – bridged construction
- Integral hydraulic front-end power unit
- Power: 120 HP CAT Diesel
- 60 degree steering
- Full hydrostatic drive with dynamic braking (multi wet-disk parking brake)
- Variable speed to 5 MPH
- Single lever joy-stick control
- Full engine instrumentation
- Hydraulic expanding width frame (expands from 66 1/2″ to 96 1/2″ inside the inner wheels)
- Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 47″
- Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
- Telescopic hydraulically operated rear cross-bar
- Eight – 8″ x 8″ aluminum keel support bars
- Six – telescopic (extendable) hydraulic arms (Forward arms pivot inward to accommodate narrow beam boats)
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: Front – 4 – 315/80R 22.5 tires / Rear – 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
