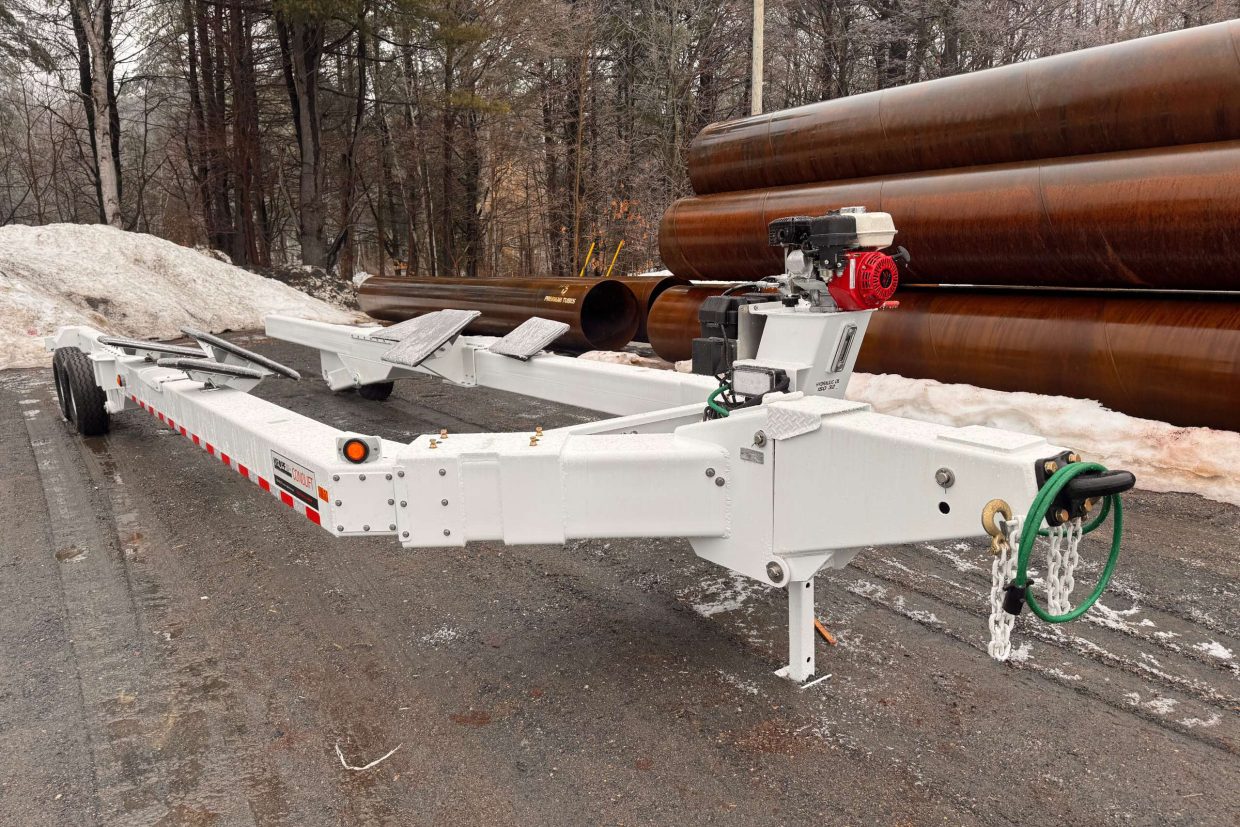

Y-10Marine Hydraulic Yard Trailer

SPECS

Yard Trailer specs

Custom PPG colour choice – 189 colors to choose from
Black or white company decal (company name & telephone number) on both sides of unit
“L” cradle arms for more efficient cradle moving – Set of 4
Stainless steel hose ends & fittings package
Wireless remote control
Electric brake package
Hot dip galvanized frame and hubs (in lieu of standard painting process)
Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats

Powerboats to 37′ LOA
Cradled sailboats to 38′ LOA
Capacity (weight) – 20,000 lbs off-road
10″ x 10″ x .250″ HSS steel tube frame
Hydraulic expanding width frame (expands from 68″ to 98″inside)
Hydraulic tongue with pintle ring
Hydraulic lift – wheel and tongue lift with frame heights to 54″
Hydraulic Power: 6.5 HP Honda gasoline engine
Pilot operated safety lock-valves on main frame lift
Hydraulically operated rear keel support strap
6 adjustable powerboat pads, 3 telescopic cradle bars with fixtures
O-ring boss and JIC hydraulic fittings
Zinc coated steel hose ends and fittings
High strength hydraulic cylinder shafts
Stainless steel hardware (nuts/bolts/pins)
Walking beam suspension
Tires: 9.00 x 14.5 bias ply
Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
