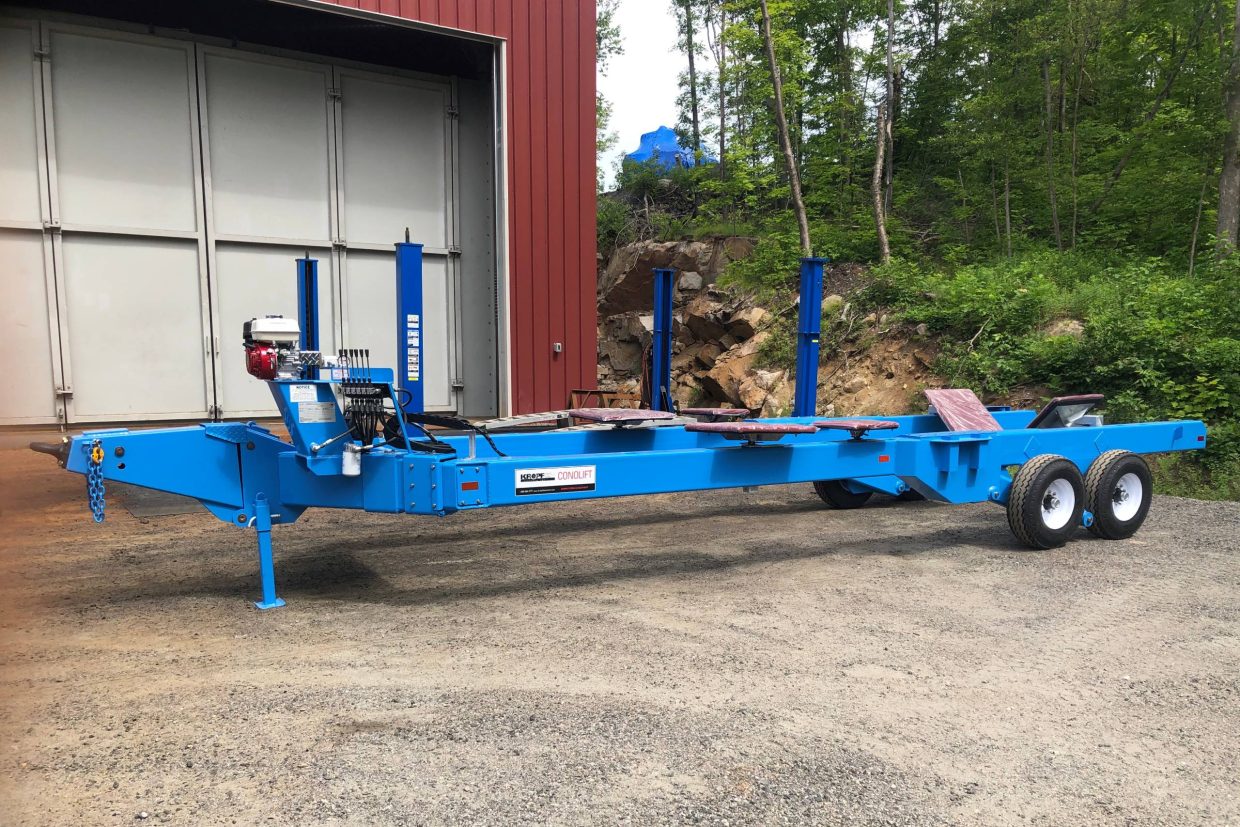

Y-7Marine Hydraulic Yard Trailer
SPECS
| Load Capacity | 14,000 lbs |
|---|---|
| Boat Length | 18' - 34' |
| A | 102" - 128" |
| B | 68" - 98" |
| C | 22" - 52" |
| D | 5' 4" |
| E | 17' |
| F | 28' 10" |
| Engine HP | 5.5 |
| Shipping Weight | 4,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- “L” cradle arms for more efficient cradle moving – Set of 4
-
Stainless steel hose ends & fittings package (includes SS cylinder shafts)
- Wireless remote control

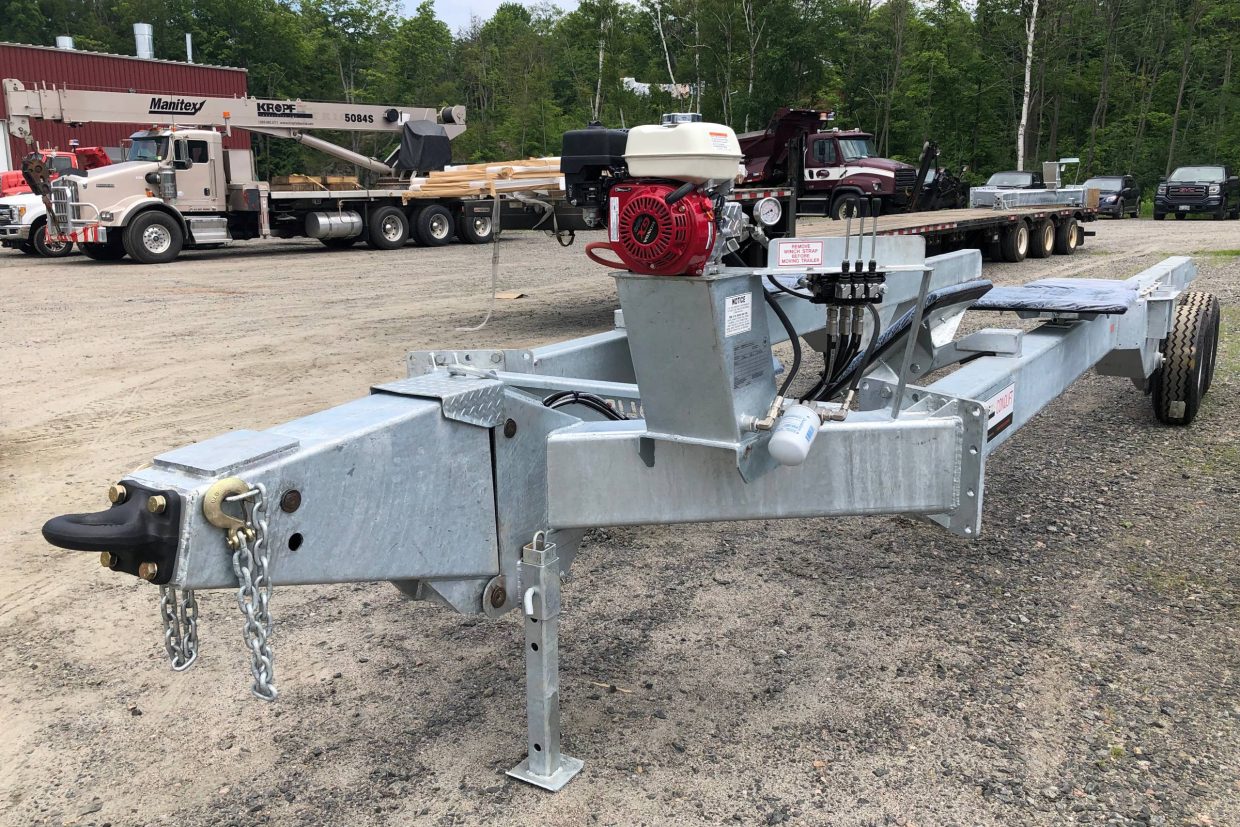

- Hot dip galvanized frame and hubs (in lieu of standard painting process)
- Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats
FEATURES
- Powerboats to 33′ LOA
- Cradled sailboats to 34′ LOA
- Capacity (weight) – 14,000 lbs
- 6″ x 10″ x .250″ HSS steel tube frame

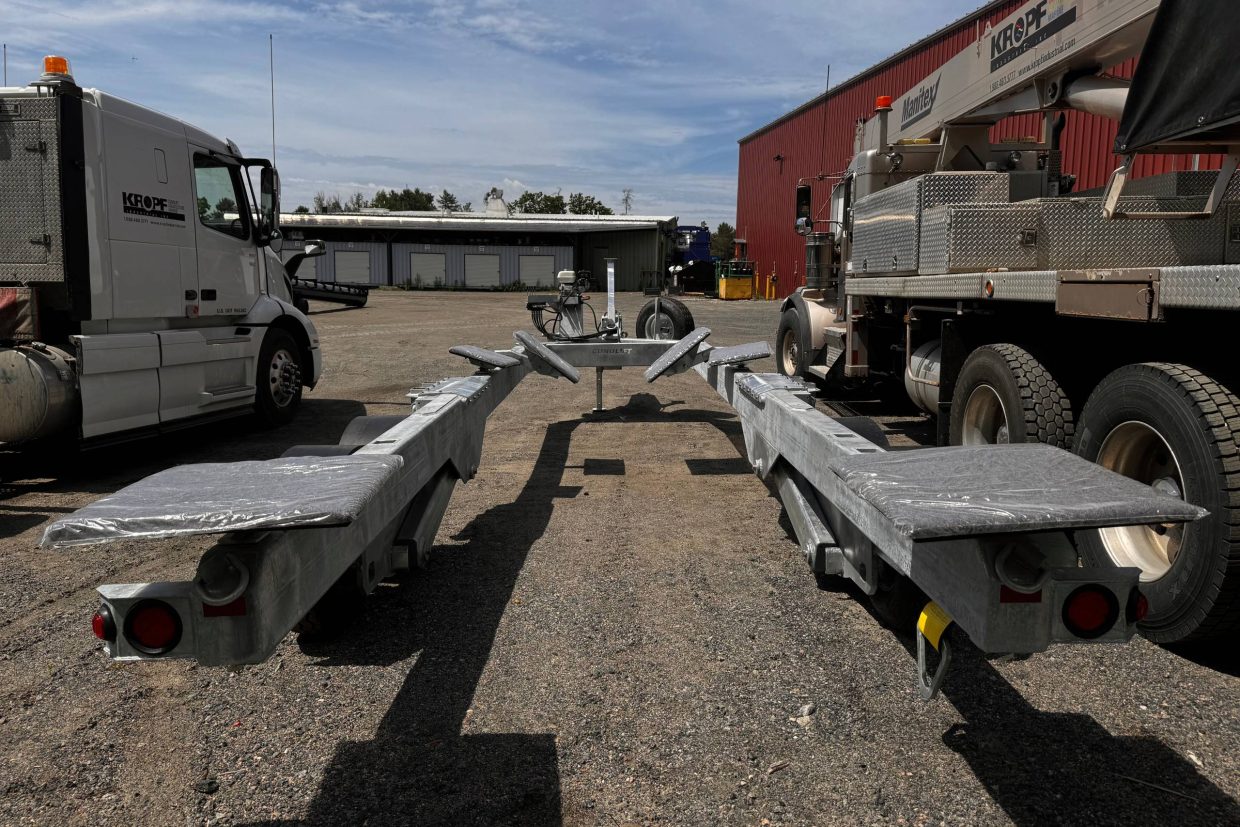

- Hydraulic expanding width frame (expands from 68″ to 98″inside)

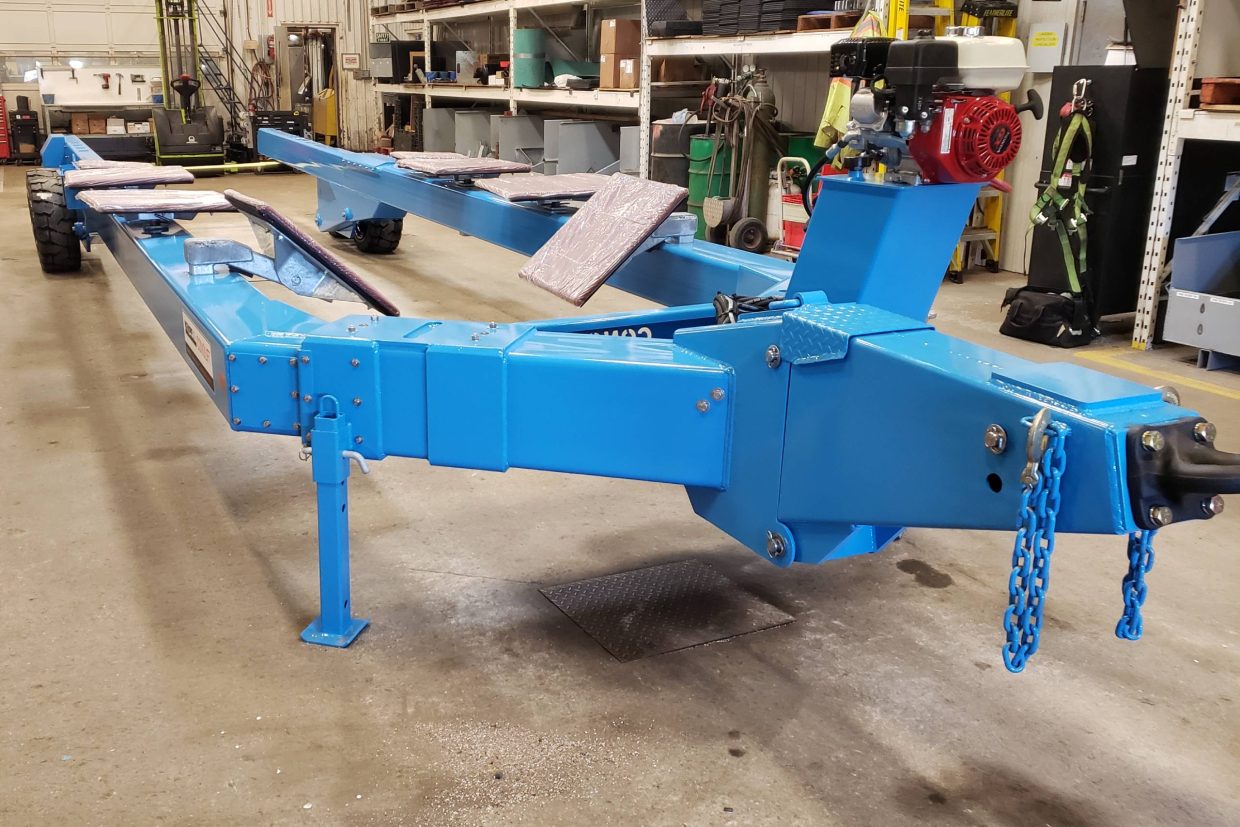

- Hydraulic tongue with pintle ring
- Hydraulic lift – wheel and tongue lift with frame heights to 54″

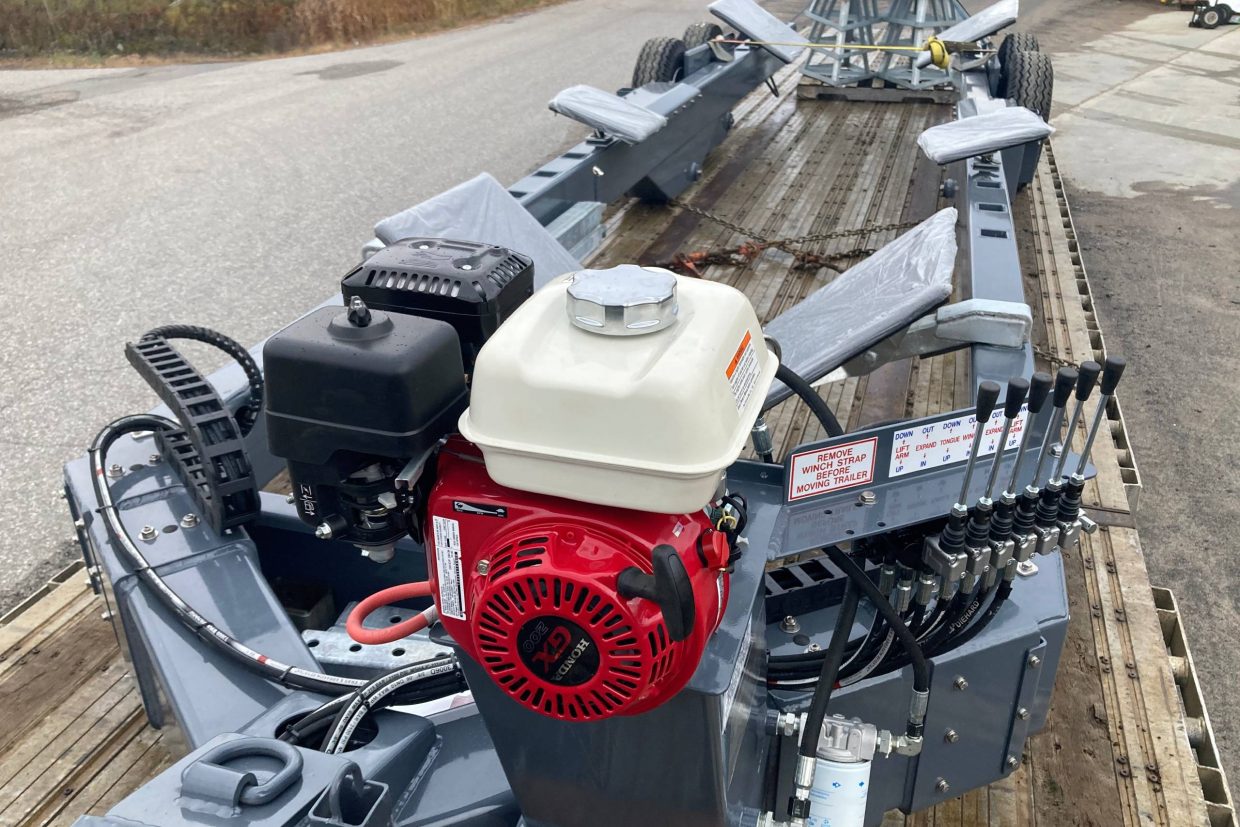

- Hydraulic Power: 6.5 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame lift
- Hydraulically operated rear keel support strap
- 6 adjustable powerboat pads; 2 telescopic cradle bars with fixtures
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 9.00 x 14.5 bias ply
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
