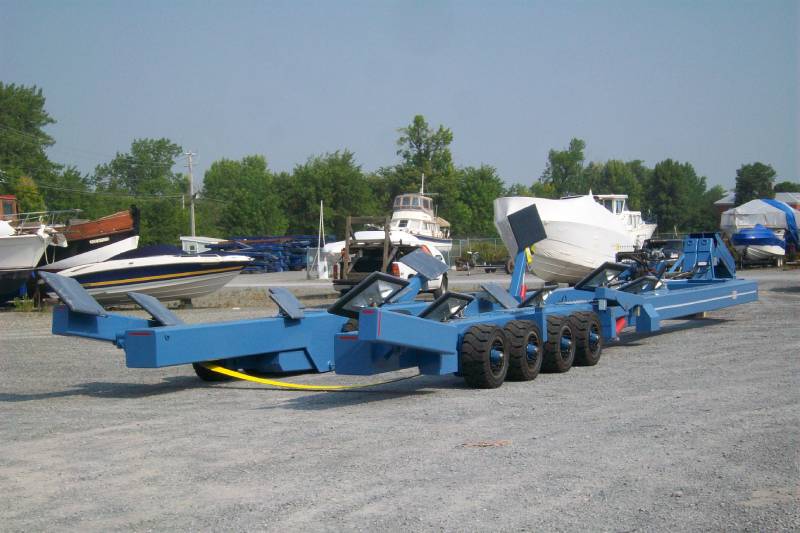

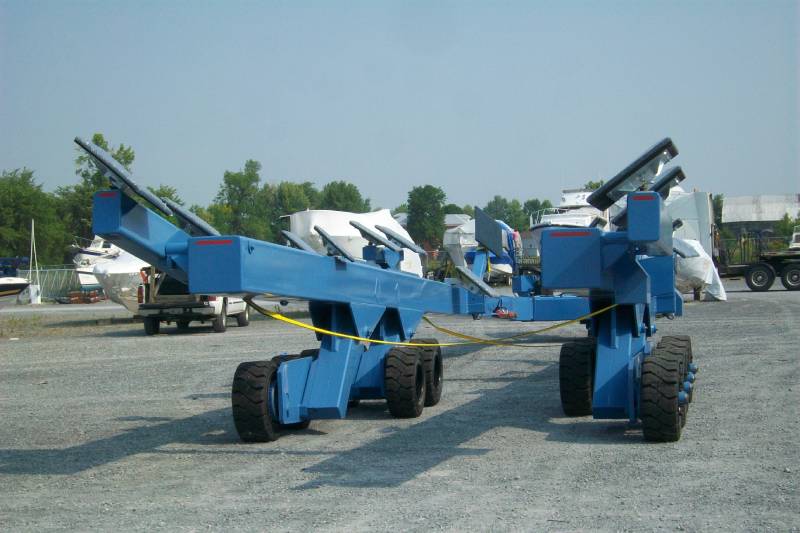

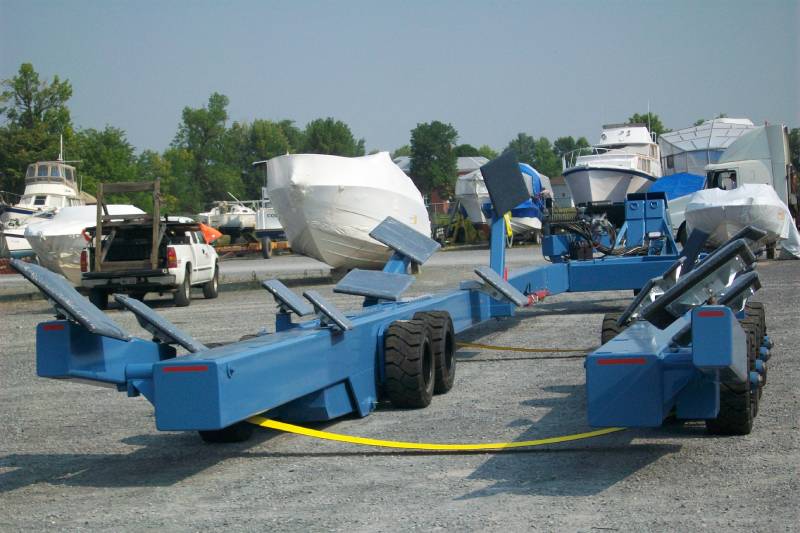

Y-80Marine Hydraulic Yard Trailer
SPECS
| Load Capacity | 160,000 lbs |
|---|---|
| Boat Length | 30' - 80' |
| A | 159" - 189" |
| B | 97" - 127" |
| C | 29" - 64" |
| D | 14' 6" |
| E | 42' |
| F | 67' |
| Engine HP | 18 |
| Shipping Weight | 30,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- Stainless steel hose ends & fittings package (includes SS cylinder shafts)
- Front dolly
- Wireless remote control
- Hydraulic fifth wheel gooseneck (2″ SAE pin)
- Hot dip galvanized frame and components (in lieu of standard painting process)
FEATURES
- Powerboats to 80′ LOA
- Sailboats to 82′ LOA
- Capacity (weight) – 160,000 lbs off-road
- 16″ x 16″ x .500″ HSS steel tube frame – bridged construction
- Hydraulic expanding width frame (expands from 66 1/2″ to 96 1/2″ inside the inner wheels)
- Hydraulic tongue with pintle ring
- Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 47″
- Hydraulic Power: 24 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
- Telescopic hydraulically operated rear cross-bar
- 8 – 8″ x 8″ aluminum keel support bars
- Six: Telescopic (extendable) hydraulic arms
Forward arms pivot inward to accommodate narrow beam boats
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
