SPECS
| Load Capacity |
60,000 lbs |
| Boat Length |
28' - 50' |
| A |
130" - 160" |
| B |
84" - 114" |
| C |
24" - 62" |
| D |
10' 6" |
| E |
27' |
| F |
46' |
| Engine HP |
9 |
| Shipping Weight |
11,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- Front sliding bow pads
- “L” cradle arms for more efficient cradle moving – Set of 8
- Rear 4-pad equalizing rocker system
- Additional hydraulic winch strap – mounted forward
- Stainless steel hose ends & fittings package (includes SS cylinder shafts)
- Wireless remote control
- Hydraulic fifth wheel gooseneck (2″ SAE pin)
- Electric/hydraulic brake package – drum brakes
- Hot dip galvanized frame and components (in lieu of standard painting process)
- Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats

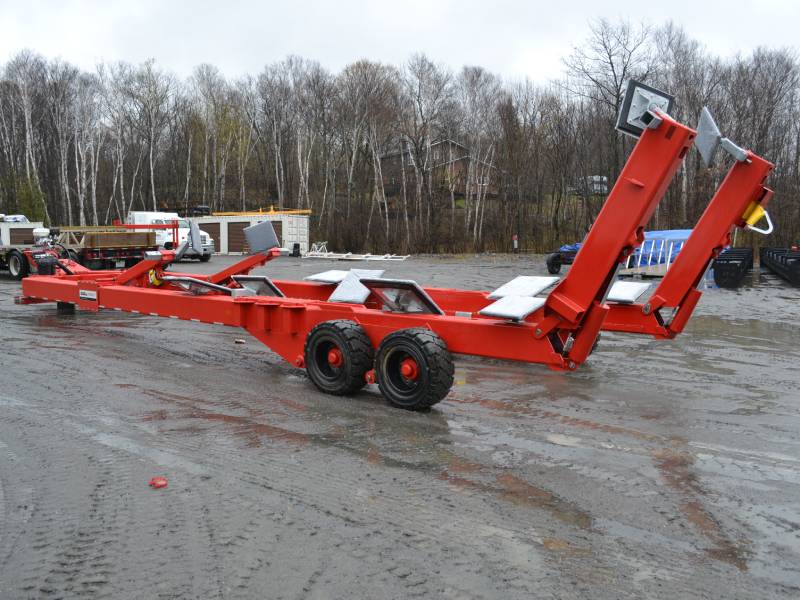

FEATURES

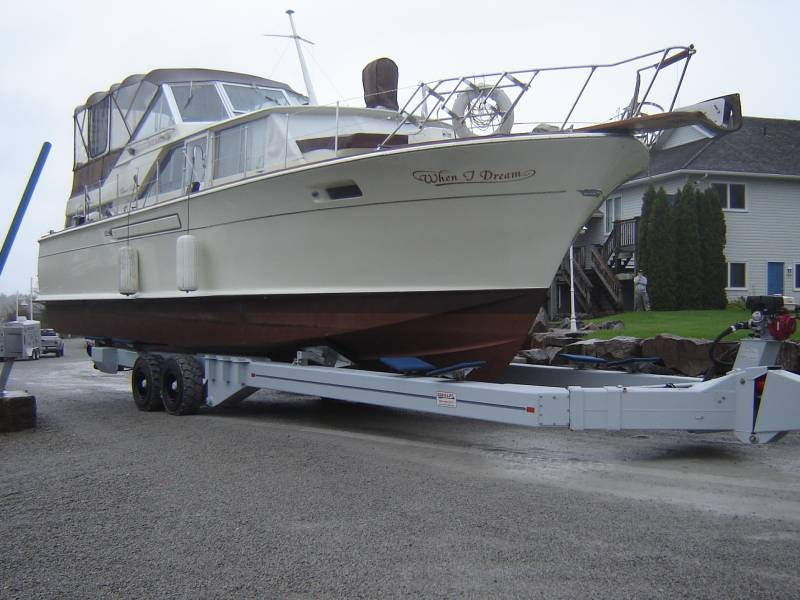

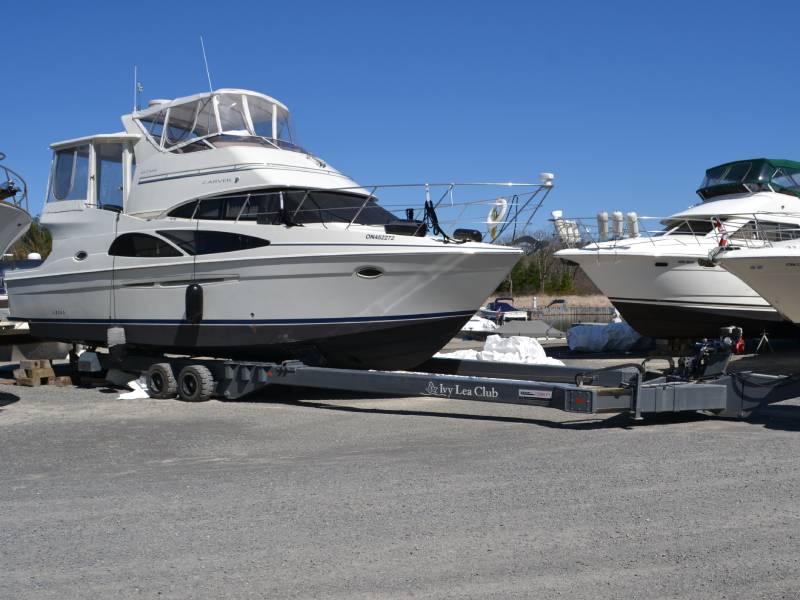

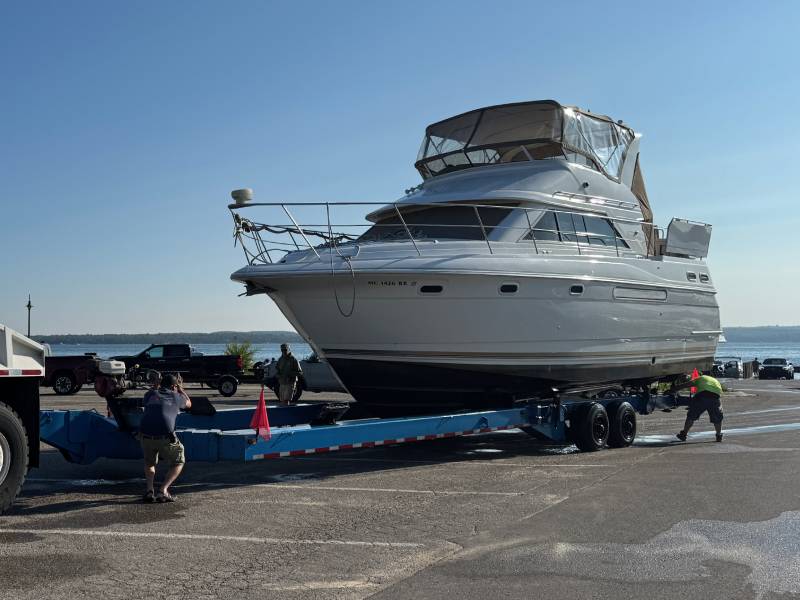

- Powerboats to 50′ LOA

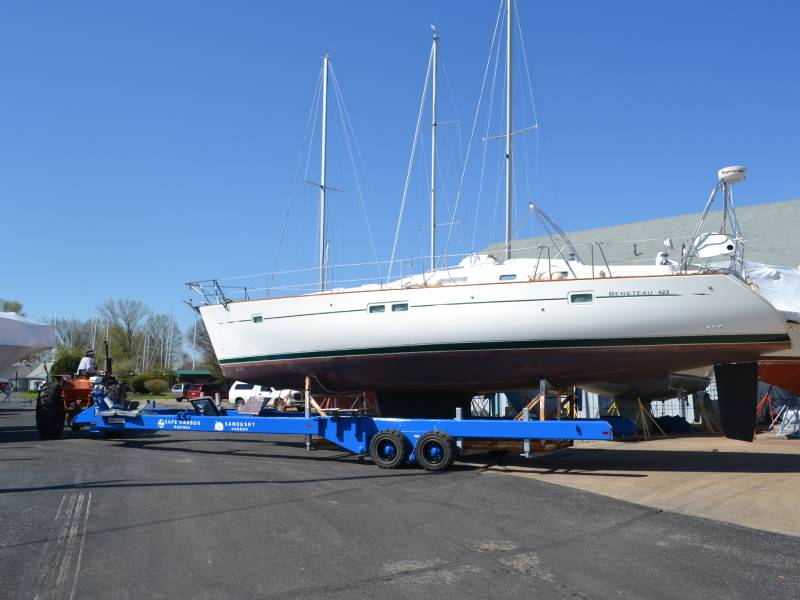

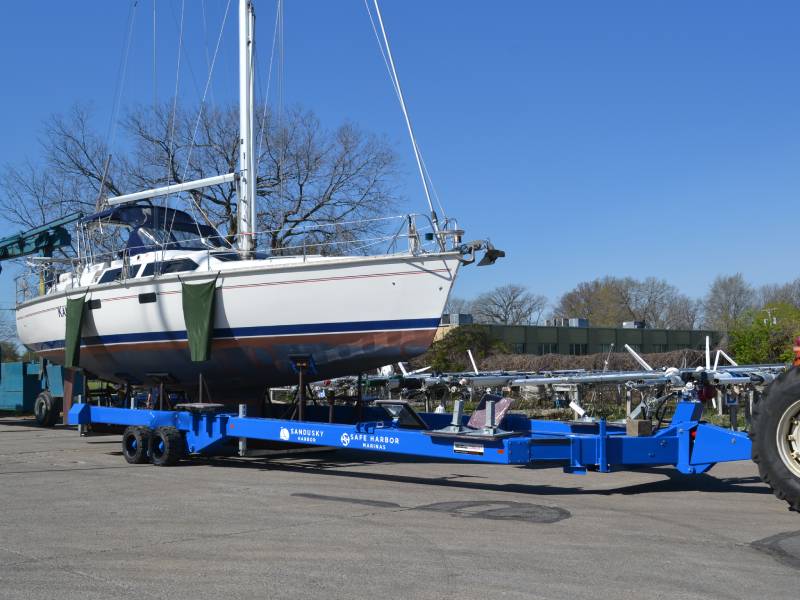

- Cradled sailboats to 52′ LOA
- Capacity (weight) – 60,000 lbs off-road
- 12″ x 12″ x .375″ HSS steel tube frame
- Hydraulic expanding width frame (expands from 84″ to 114″inside)
- Hydraulic tongue with pintle ring
- Hydraulic lift – wheel and tongue lift with frame heights to 62″

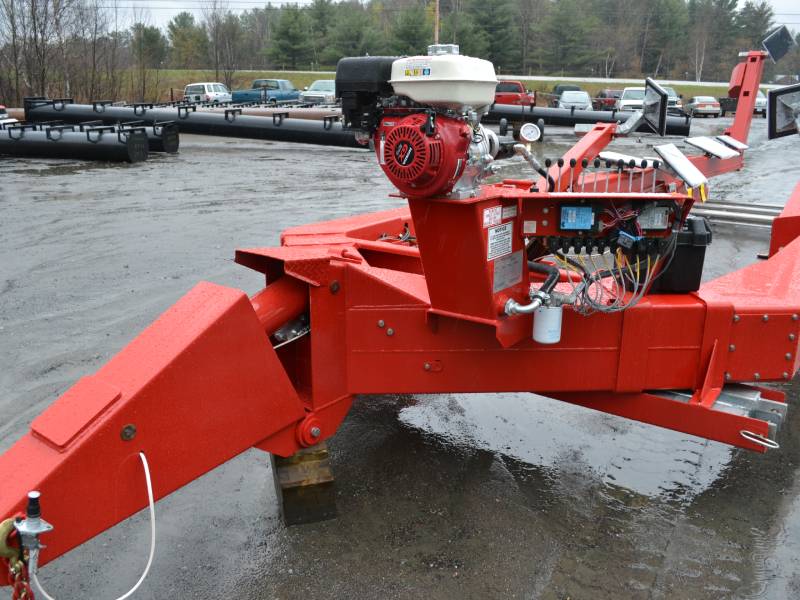

- Hydraulic Power: 9 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame lift
- Hydraulically operated rear keel support strap
- 10 adjustable powerboat pads, 3 telescopic cradle bars with fixtures
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
