Y-4

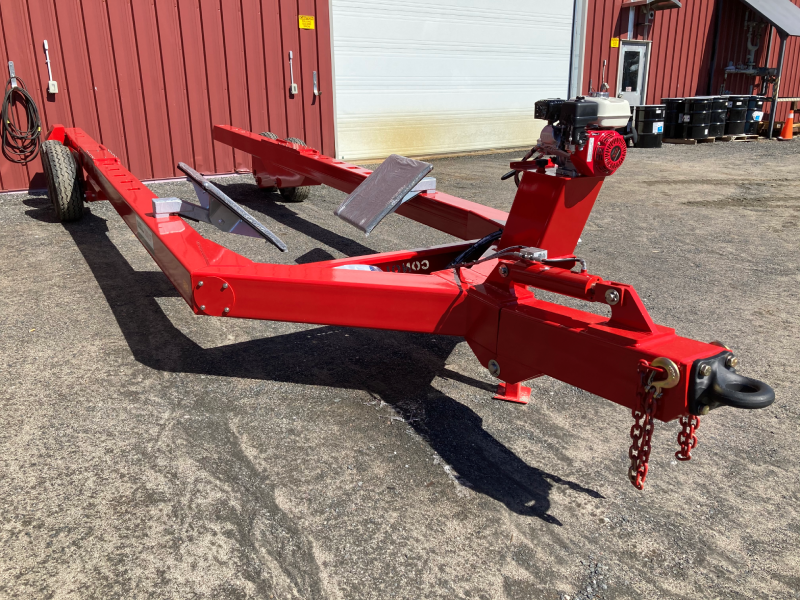

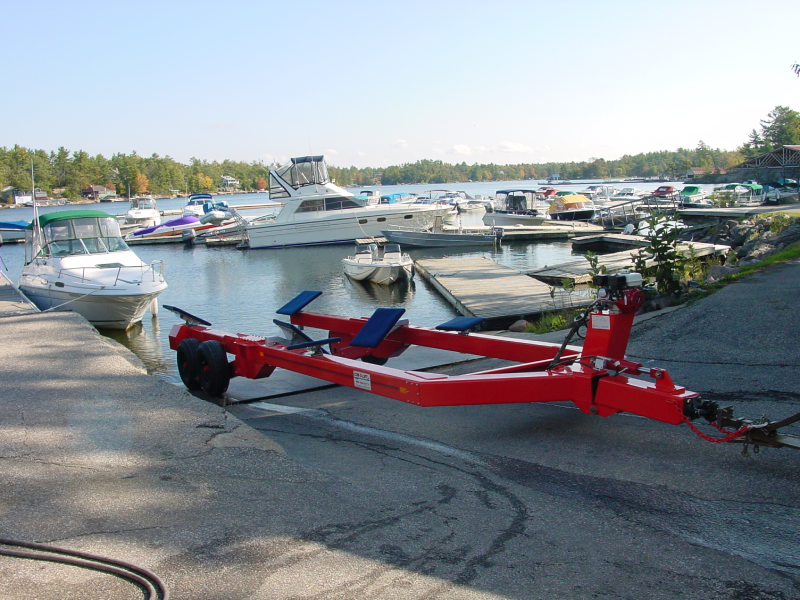

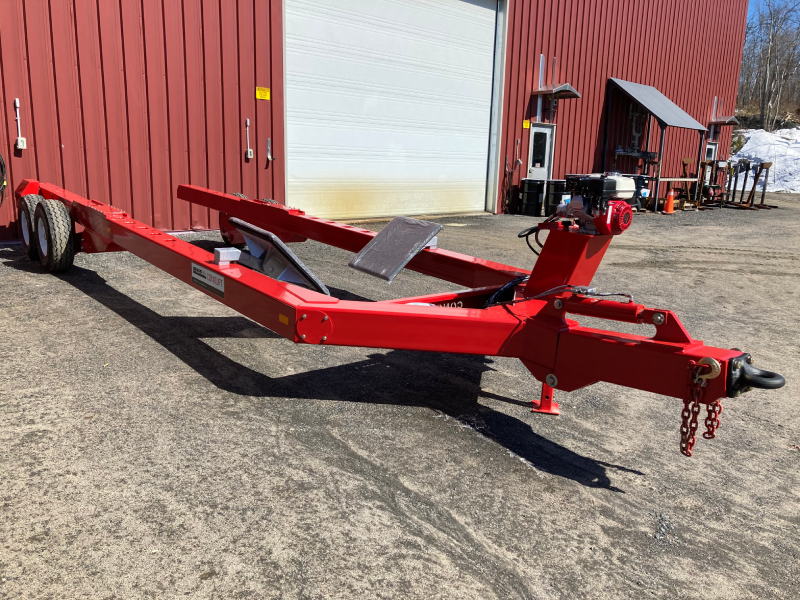

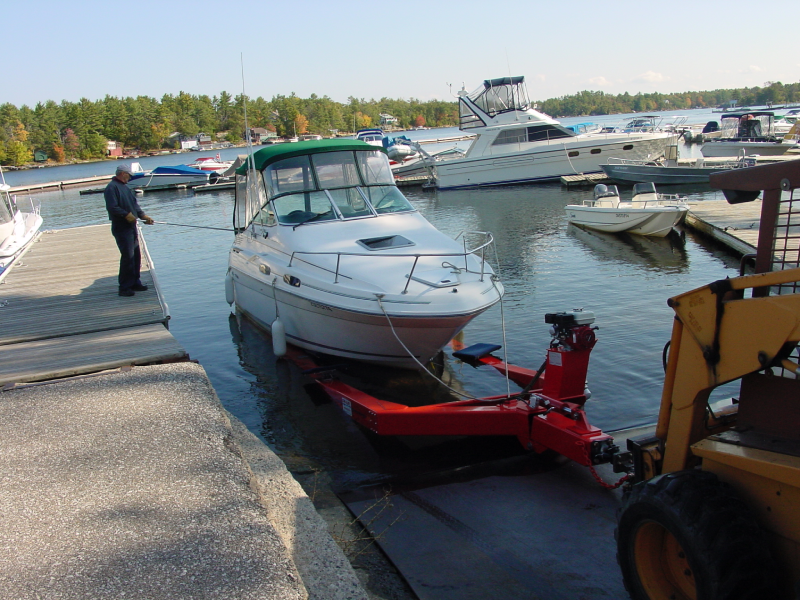

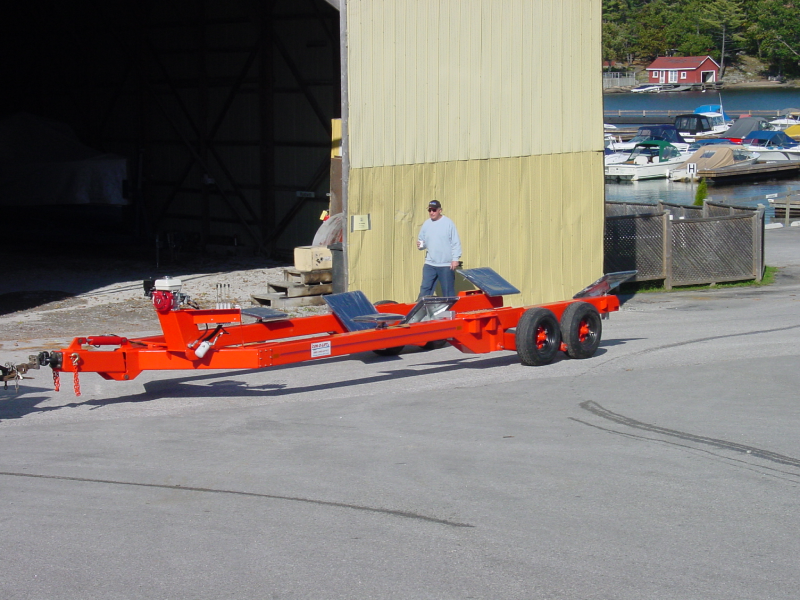

Marine Hydraulic Yard Trailer

SPECS

Load Capacity 6,000 lbs
Boat Length 16' - 24'
A 102"
B 64"
C 20" - 40"
D 5'
E 16' 3"
F 26' 10"
Engine HP 5.5
Shipping Weight 3,400 lbs

Yard Trailer specs

Optional Equipment

  • Custom PPG colour choice – 189 colors to choose from
  • Black or white decal (company name & telephone number) on both sides of unit
  • Stainless steel hose ends & fittings package (includes SS cylinder shafts)
  • Wireless remote control
  • Hot dip galvanized frame and hubs (in lieu of standard painting process)
  • Hydraulic 4-arm package for handling non-cradled sail boats

FEATURES

  • Powerboats to 28′ LOA
  • Cradled sailbots to 30′ LOA
  • Capacity (weight) – 10,000 lbs off-road
  • 8″ x 8″ x .250″ HSS steel tube frame
  • Fixed¬†width frame (non-expanding) with 64″ clear inside width
  • Hydraulic tongue with pintle ring
  • Hydraulic lift – wheel and tongue lift with frame heights to 40″
  • Hydraulic Power:¬†5.5 HP Honda gasoline engine
  • Pilot operated safety lock-valves on main frame lift
  • Hydraulically operated rear keel support strap
  • 4 adjustable powerboat pads
  • O-ring boss and JIC hydraulic fittings
  • Zinc coated steel hose ends and fittings
  • High strength hydraulic cylinder shafts
  • Stainless steel hardware (nuts/bolts/pins)
  • Walking beam suspension
  • Tires: 9.00 x 14.5 bias ply
  • Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
  • Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
  • 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
