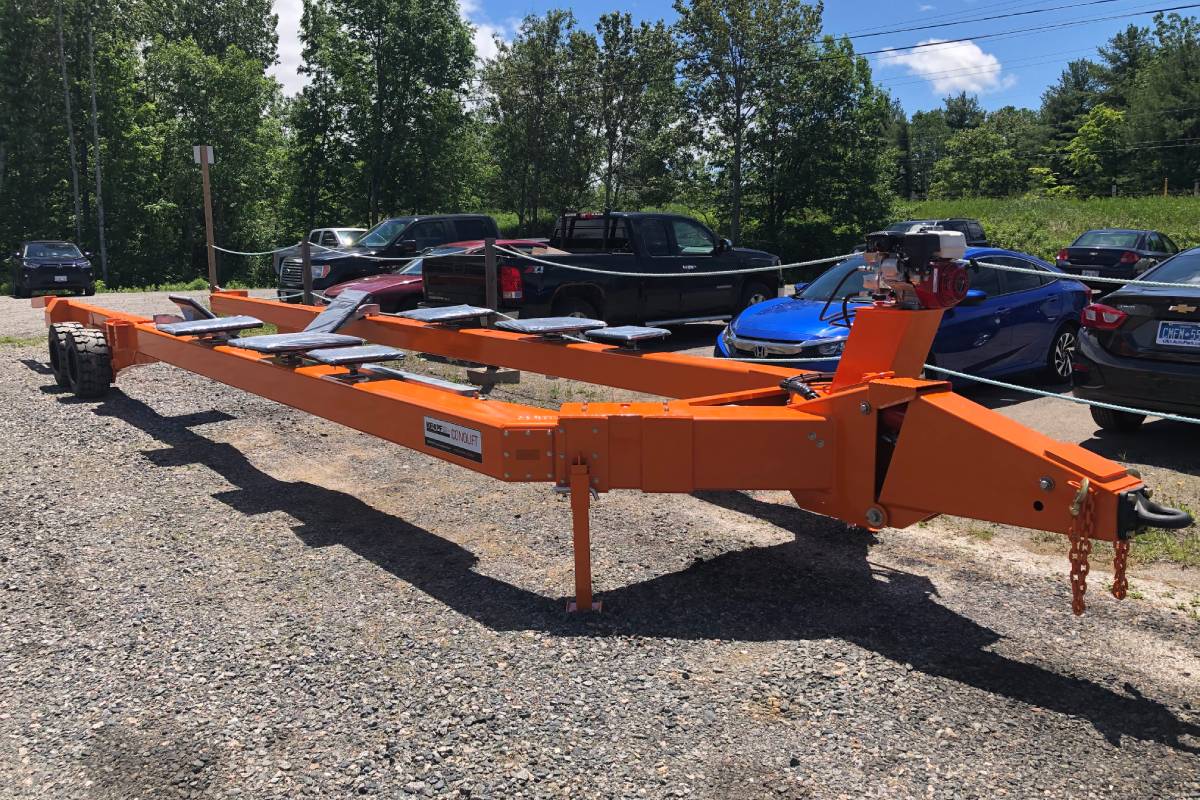

Y-25Marine Hydraulic Yard Trailer

SPECS

Load Capacity 50,000 lbs
Boat Length 20' - 48'
A 111" - 141"
B 68" - 98"
C 24" - 56"
D 8' 6"
E 27'
F 42'
Engine HP 5.5
Shipping Weight 8,800 lbs

Yard Trailer specs

Optional Equipment

  • Custom PPG colour choice – 189 colors to choose from
  • Black or white decal (company name and telephone number) on both sides of unit
  • Front sliding bow pads
  • “L” cradle arms for more efficient cradle moving – Set of 8
  • Rear 4-pad equalizing rocker system
  • Stainless steel hose ends & fittings package (includes SS cylinder shafts)
  • Wireless remote control
  • Electric/hydraulic brake package – drum brakes
  • Suspension package (includes fenders and lights)
  • Hot dip galvanized frame and hubs (in lieu of standard painting process)
  • Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats

FEATURES

  • Powerboats to 48′ LOA
  • Cradled sailboats to 50′ LOA
  • Capacity (weight) – 50,000 lbs off-road
  • 10″ x 10″ x .500″ HSS steel tube frame
  • Hydraulic expanding width frame (expands from 68″ to 98″inside)
  • Hydraulic tongue with pintle ring
  • Hydraulic lift – wheel and tongue lift with frame heights to 56″
  • Hydraulic Power: 6.5 HP Honda gasoline engine
  • Pilot operated safety lock-valves on main frame lift
  • Hydraulically operated rear keel support strap
  • 8 adjustable powerboat pads, 3 telescopic cradle bars with fixtures
  • O-ring boss and JIC hydraulic fittings
  • Zinc coated steel hose ends and fittings
  • High strength hydraulic cylinder shafts
  • Stainless steel hardware (nuts/bolts/pins)
  • Walking beam suspension
  • Tires: 28″ premium wide-trac solid Titan tires
  • Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
  • Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
  • 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
