Y-60
Marine Hydraulic Yard Trailer
SPECS
| Load Capacity | 120,000 lbs |
|---|---|
| Boat Length | 30' - 70' |
| A | 156" - 186" |
| B | 96" - 126" |
| C | 30" - 66" |
| D | 16' |
| E | 36' |
| F | 60' |
| Engine HP | 11 |
| Shipping Weight | 22,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- Electric start
- Stainless steel hose ends & fittings package (includes SS cylinder shafts)
- Wireless remote control
- Hydraulic fifth wheel gooseneck (2″ SAE pin)
- Hot dip galvanized frame and components (in lieu of standard painting process)
- Hydraulic 6 arm package with rear arm swivel for handling non-cradled sail boats
FEATURES
- Powerboats to 70′ LOA
- Capacity (weight) – 120,000 lbs off-road
- 14″ x 14″ x .500″ HSS steel tube frame
- Hydraulic expanding width frame (expands from 96″ to 126″inside)
- Hydraulic tongue with pintle ring
- Hydraulic lift – wheel and tongue lift with frame heights to 66″

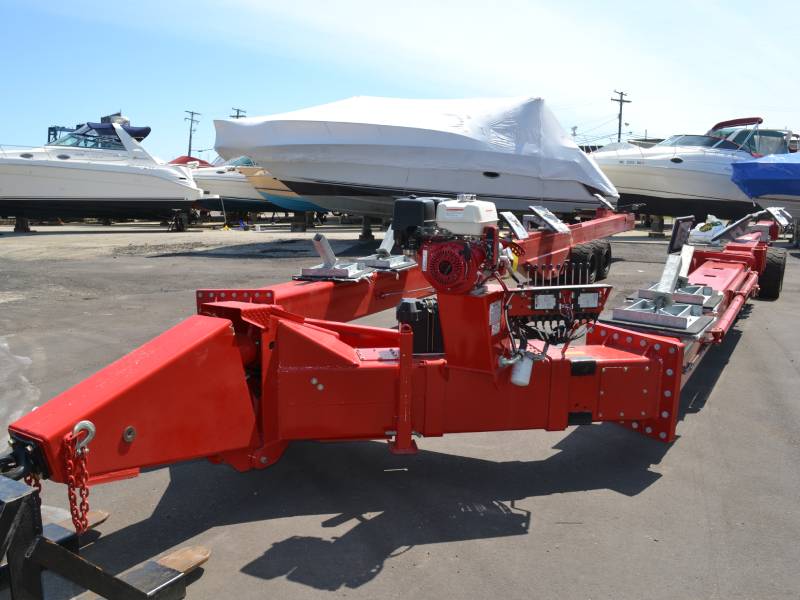

- Hydraulic Power: 11 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame lift

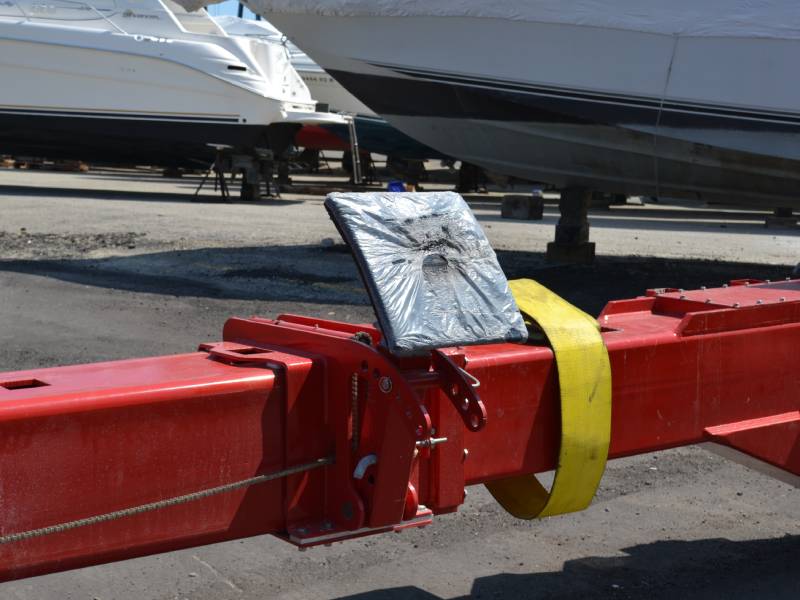

- Hydraulically operated fore and aft keel support straps
- Rear 4-pad equalizing rocker system
- 12 adjustable powerboat pads
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
