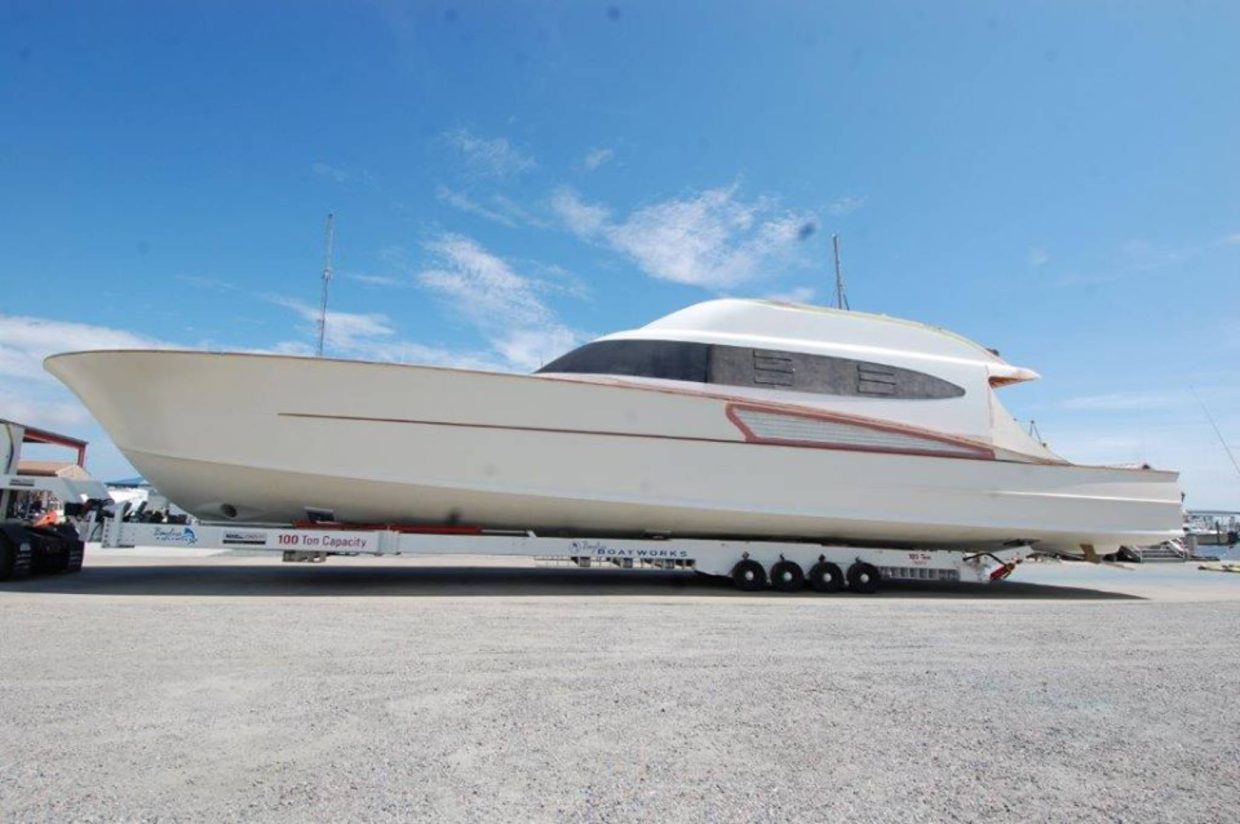

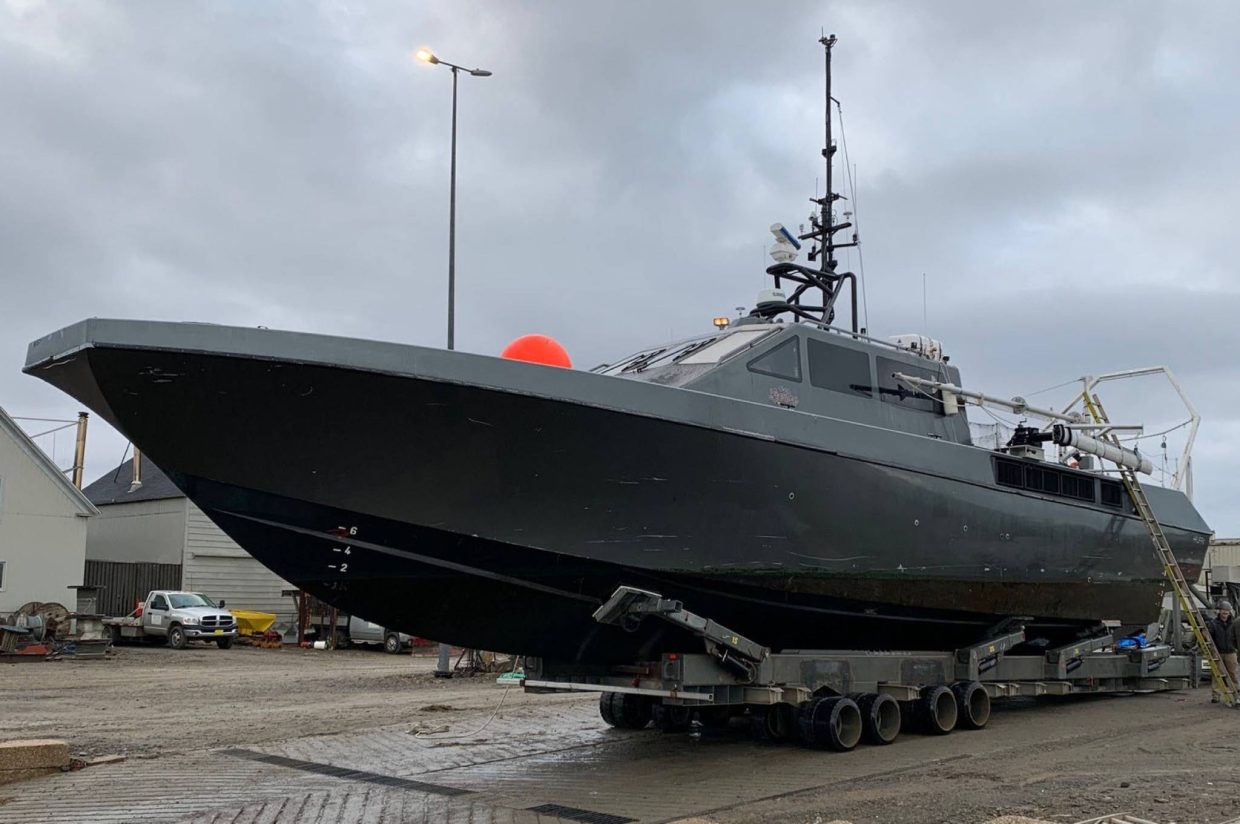

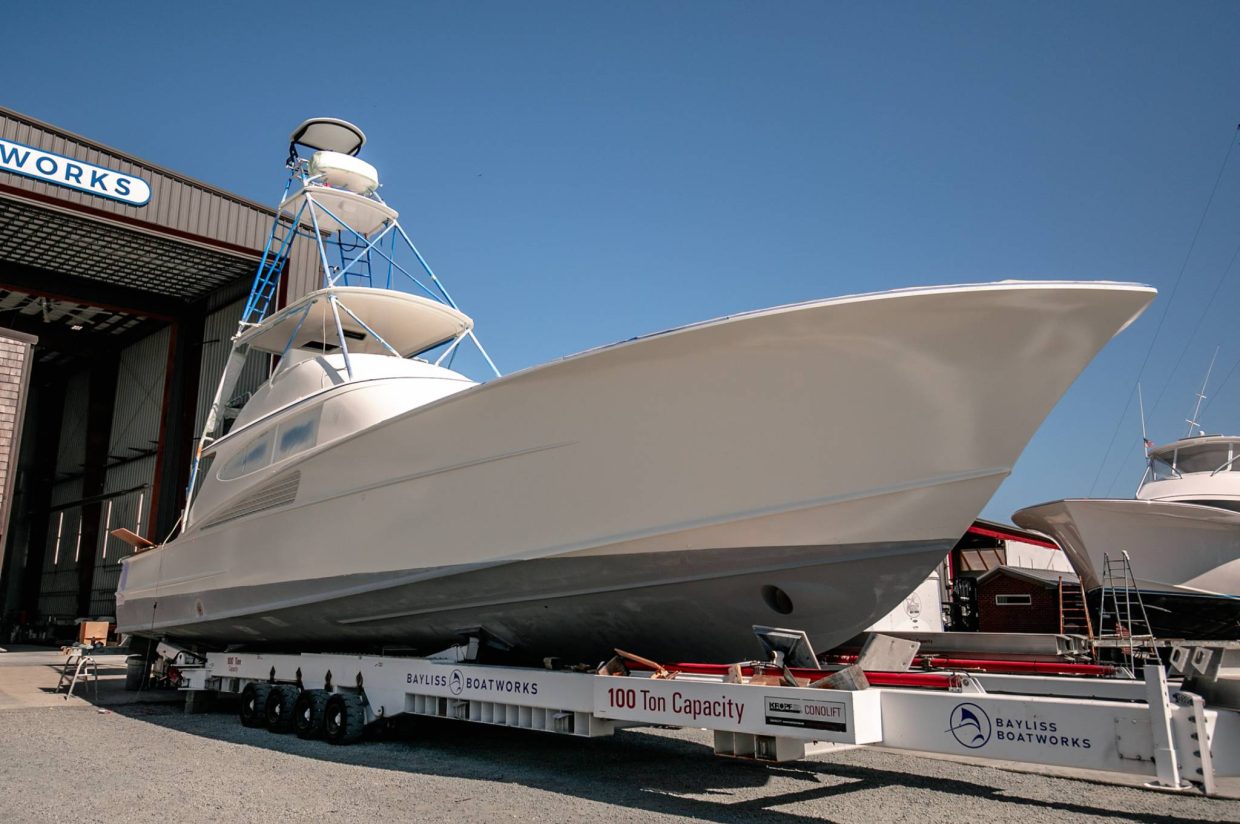

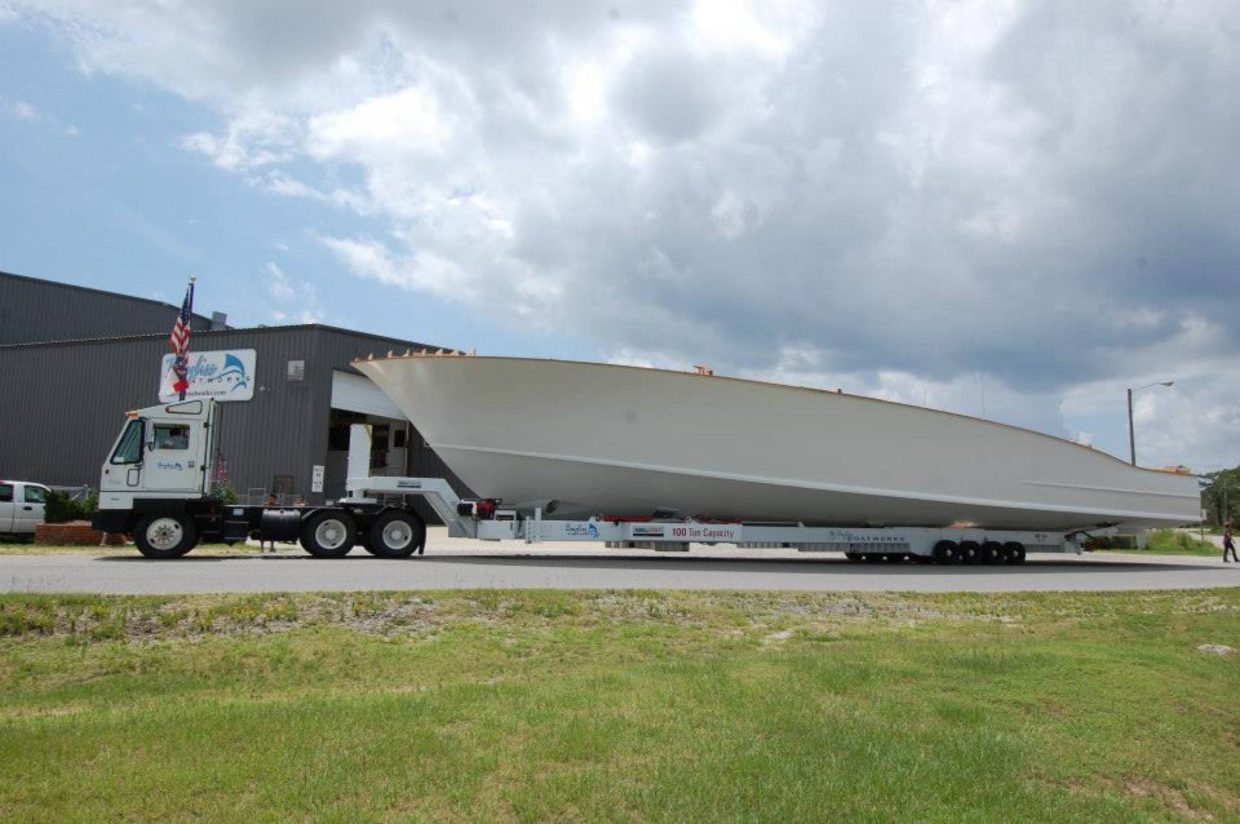

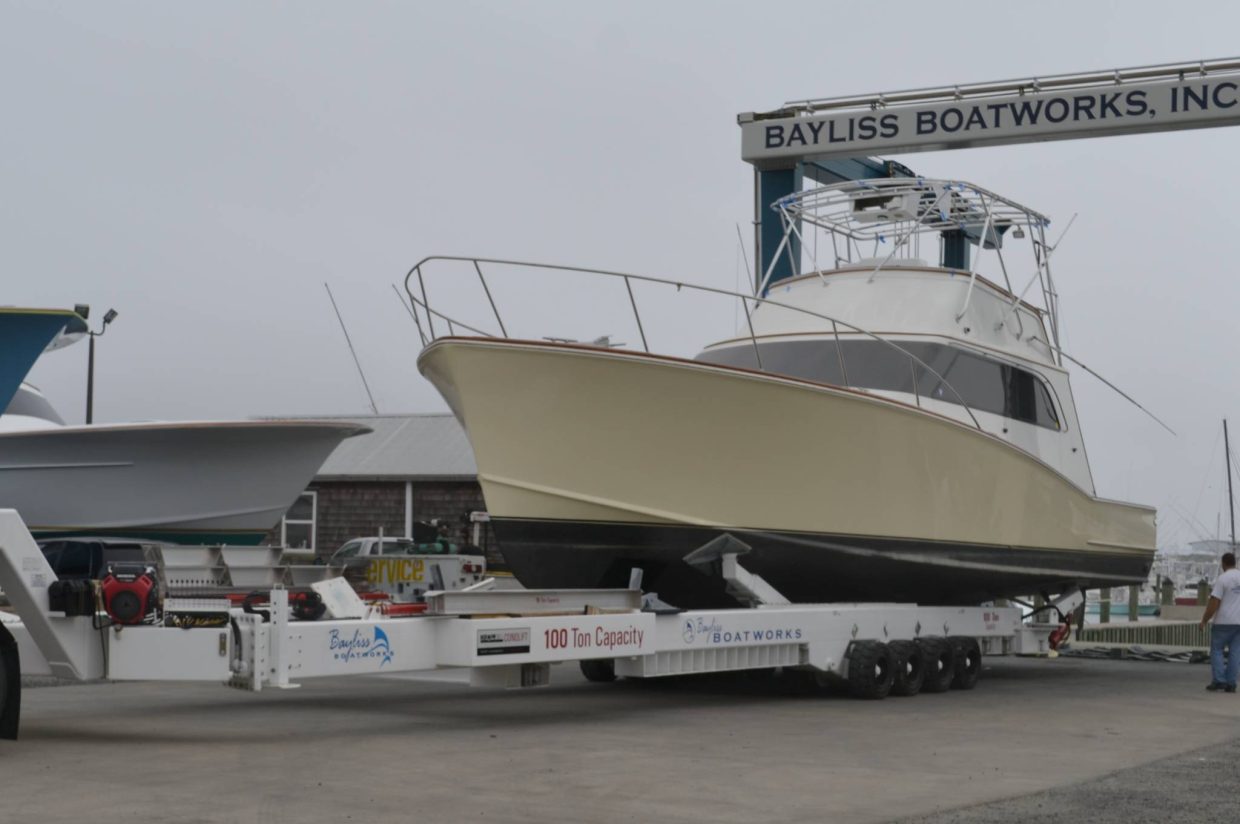

Y-100
Marine Hydraulic Yard Trailer
SPECS
| Load Capacity | 200,000 lbs |
|---|---|
| Boat Length | 30' - 90' |
| A | 166" - 196" |
| B | 97" - 127" |
| C | 29" - 64" |
| D | 16' 5" |
| E | 59' 6" |
| F | 94' 5" |
| Engine HP | 18 |
| Shipping Weight | 40,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- Stainless steel hose ends & fittings package (includes stainless cylinder shafts)
- Wireless remote control
- Hot dip galvanized frame and components (in lieu of standard painting process)
FEATURES
- Powerboats to 90′ LOA
- Sailboats to 92′ LOA
- Capacity (weight) – 200,000 lbs off-road
- 16″ x 16″ x .500″ HSS steel tube frame – bridged construction
- Hydraulic expanding width frame (expands from 65″ to 95″ inside the inner wheels)
- Hydraulic dolly wheel with pintle ring tongue
- Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 42″
- Hydraulic Power: 24 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
- Telescopic hydraulically operated rear cross-bar
- 10 – 8″ x 8″ aluminum keel support bars
- Six – telescopic (extendable) hydraulic arms
- Forward arms pivot inward to accommodate narrow beam boats
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Walking beam suspension
- Tires: 28″ premium wide-trac solid Titan tires
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
