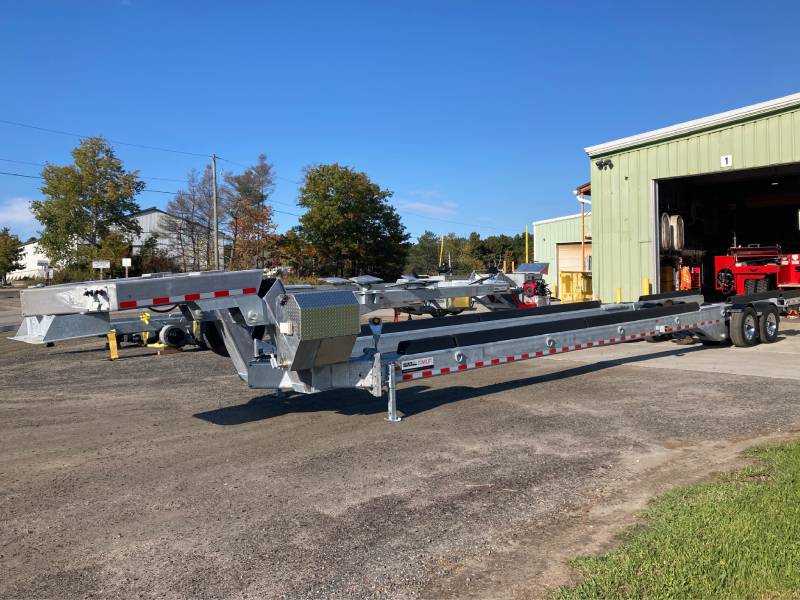

YH-20

Highway Trailer

SPECS

ON ROAD 40,000 lbs
OFF ROAD 40,000 lbs
BOAT LENGTH 30' - 53'
A 115" - 168"
B 41" - 94"
C 30" - 58"
D 10' 2"
E 31'
F 53'
Shipping Weight 20,000 lbs

Yard Trailer specs

Optional Equipment

  • Custom colour choice – 189 colors to choose from
  • Stainless steel hose ends & fittings package
  • Wireless remote control
  • Hot dip galvanized frame and hubs
  • Hydraulic 4-arm package for handling non-cradled sail boats

FEATURES

  • Capacity (weight)
  • High strength HSS open frame
  • Hydraulic expanding width frame (expands from 41″ – 94″ inside)
  • Hydraulic HD low-profile gooseneck (for semi-tractor)
  • Hydraulic lift – wheel and tongue lift with frame heights to 58″
  • Hydraulic Power: 6.5 HP Honda gasoline engine
  • Pilot operated safety lock-valves on main frame lift

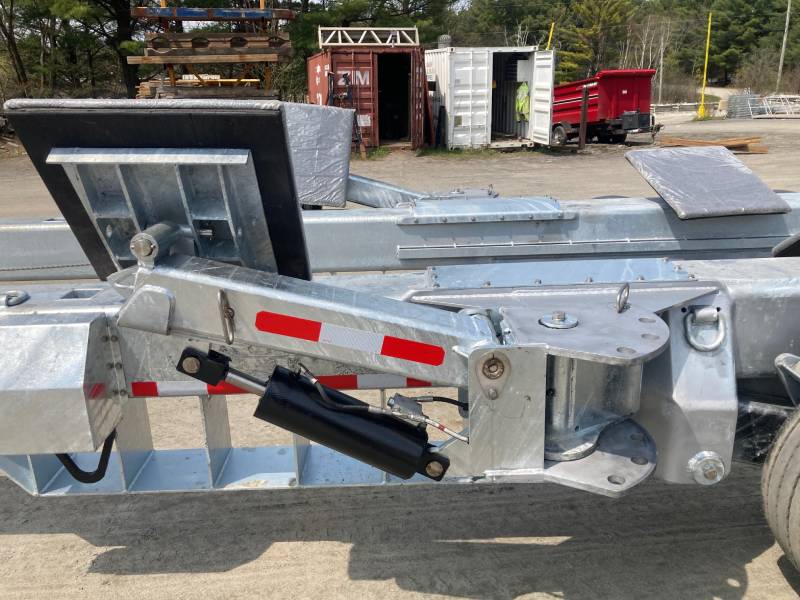

  • Hydraulically operated rear keel support strap
  • 10¬†adjustable powerboat pads
  • O-ring boss and JIC hydraulic fittings
  • Zinc coated steel hose ends and fittings
  • High strength hydraulic cylinder shafts
  • Stainless steel hardware (nuts/bolts/pins)
  • ¬†MTO/DOT approved lighting package
  • LED lights with marine grade wiring
  • Rubber fenders
  • Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
  • Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
  • 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
