YH-30

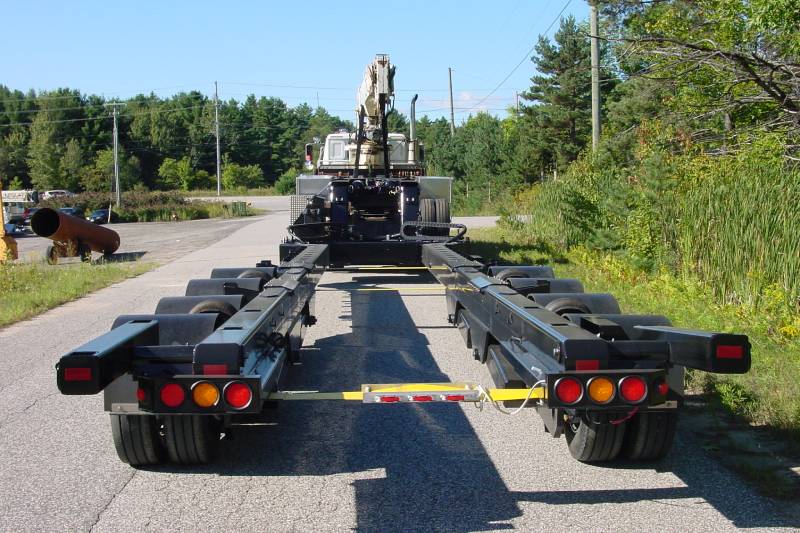

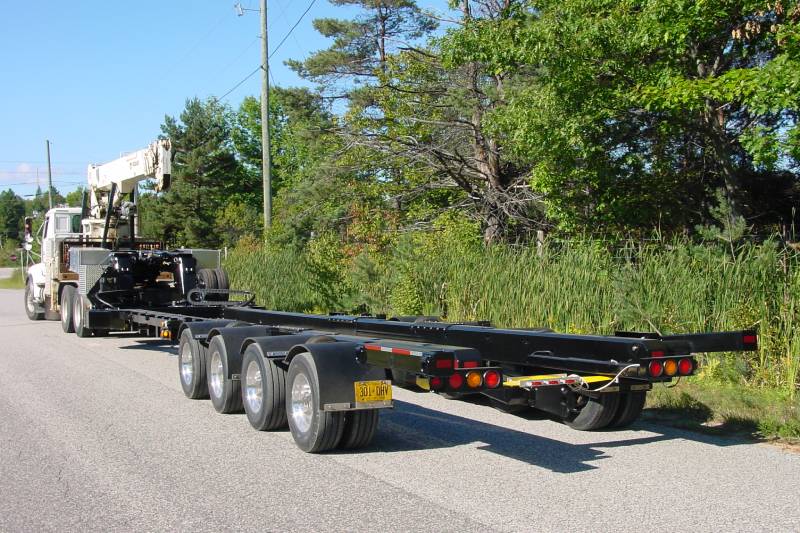

Highway Trailer

SPECS

ON ROAD 60,000 lbs
OFF ROAD 60,000 lbs
BOAT LENGTH 25' - 56'
A 120" - 166"
B 55" - 101"
C 26" - 64"
D 11' 6"
E 29' 1"
F 56'
Shipping Weight 25,000 lbs

Yard Trailer specs

Optional Equipment

  • Custom PPGĀ colour choice – 189 colors to choose from
  • Black or white decal (company name & telephone number) on both sides of unit
  • Air-ride suspension system with 12 volt compressor and tank
  • Aluminum rims
  • Stainless steel hose ends & fittings package includes stainless steel cyl. shafts
  • Wireless remote control
  • Hot dip galvanized frame and hubs (in lieu of standard painting process)

FEATURES

  • Heavy duty HSS steel tube frame
  • Hydraulic expanding width frame (expands from 55″ – 101″ inside
  • Hydraulic HD double gooseneck (with 2″ SAE pin)
  • Hydraulic lift – wheel and tongue lift with frame heights to 58″

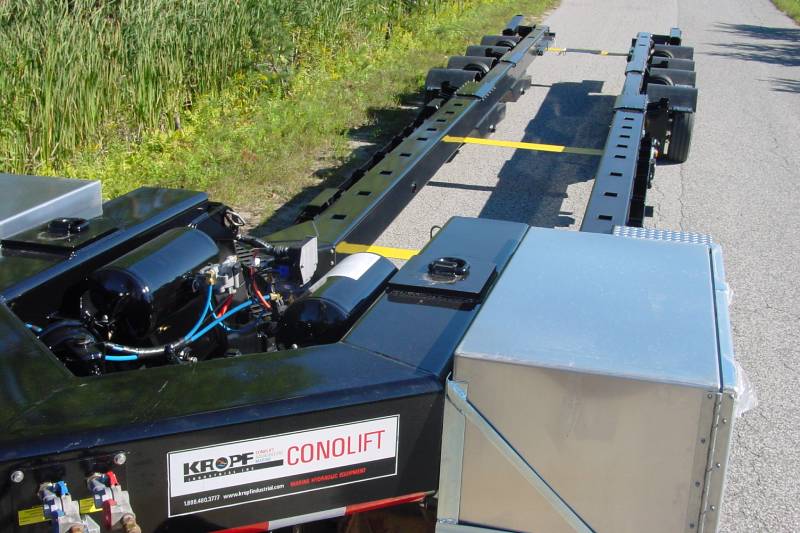

  • Hydraulic Power: 11 HP Honda gasoline engine with electric start
  • Pilot operated safety lock-valves on all lift functions
  • Hydraulically operated keel support straps – one in forward frame, one at rear
  • 12 adjustable powerboat pads
  • O-ring boss and JIC hydraulic fittings
  • Rear 4-pad equalizing rockers
  • Zinc coated steel hose ends and fittings
  • High strength hydraulic cylinder shafts
  • Stainless steel hardware (nuts/bolts/pins)
  • Nitrogen ride suspension system
  • MTO/DOT approved lighting package (includes center frame-mounted turn signals)
  • LED lights with marine grade wiring
  • Extendable rear tail-lights featuring built-in amber strobes
  • Power outlet at rear of trailer for additional marker/strobe lights
  • Air / hydraulic braking system with anti-lock (as required by MTO/DOT)
  • Tires: 245/75R17.5 radials – 18 rims & tires total (including 2 spares)
  • Storage mount for spare tires
  • Flexible rubber fenders
  • Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
  • Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
  • 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
