SPECS
| ON ROAD |
14,000 lbs |
| OFF ROAD |
16,000 lbs |
| BOAT LENGTH |
18' - 33' |
| A |
102" - 108" |
| B |
68" - 98" |
| C |
22" - 52" |
| D |
5' 4" |
| E |
17' 0" |
| F |
28' 10" |
| Shipping Weight |
6,000 lbs |
Optional Equipment
- Custom PPG colour choice – 189 colors to choose from
- Black or white decal (company name & telephone number) on both sides of unit
- “L” cradle arms Set of 4
- Electric start
- Electric / hydraulic silver cadmium plated disc brakes
- Electric / hydraulic silver cadmium plated disc brakes with stainless steel calipers
- Air-ride suspension system with 12 volt compressor and tank
- Hydraulic fifth wheel gooseneck (2″ SAE pin or Inverted Binkley)
- Stainless steel hose ends & fittings package (includes stainless steel cylinder shafts)
- Wireless remote control
- Hot dip galvanized frame and components (in lieu of standard painting process)
- Hydraulic 4-arm package with rear swivel for handling non-cradled sail boats
FEATURES
- 6″ x 10″ x .250″ HSS steel tube frame
- Hydraulic expanding width frame (expands from 68″ – 98″ inside)
- Hydraulic tongue with pintle ring
- Hydraulic lift – wheel and tongue lift with frame heights to 58″
- Hydraulic Power: 6.5 HP Honda gasoline engine
- Pilot operated safety lock-valves on main frame lift

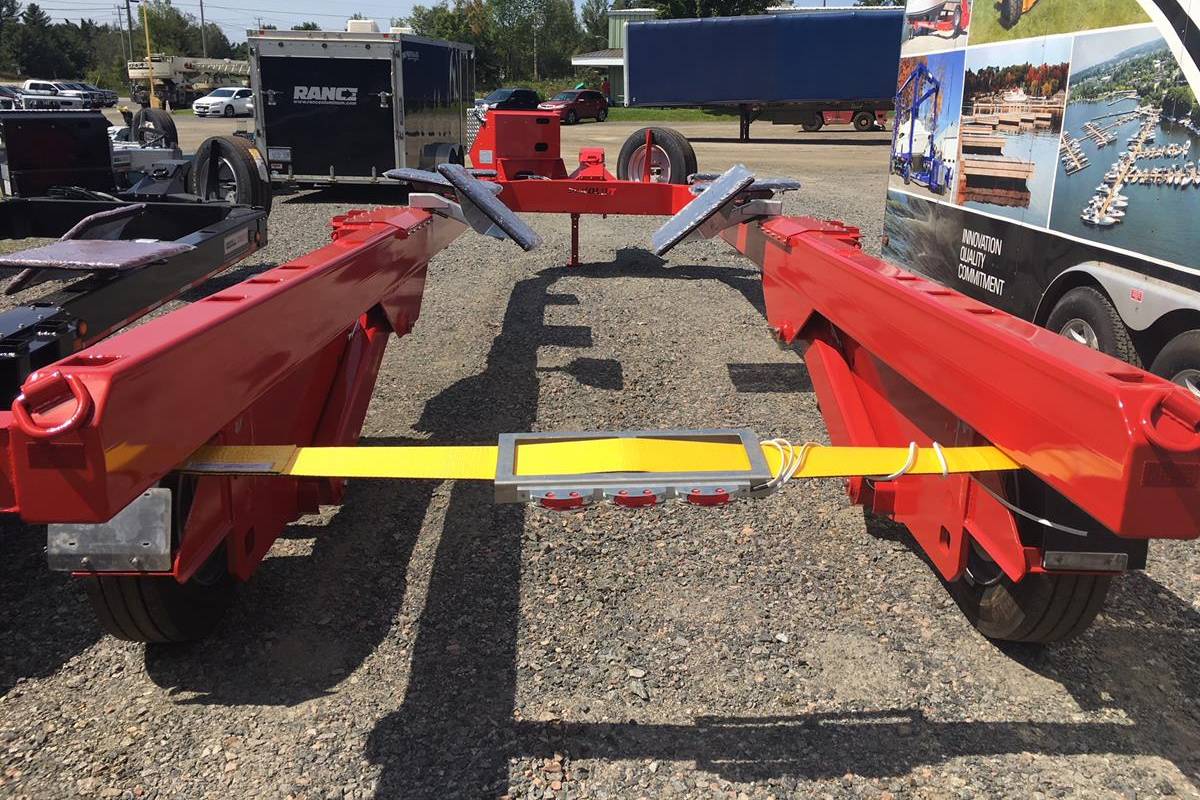

- Hydraulically operated rear keel support strap
- 6 adjustable powerboat pads; 2 telescopic cradle bars with fixtures
- O-ring boss and JIC hydraulic fittings
- Zinc coated steel hose ends and fittings
- High strength hydraulic cylinder shafts
- Stainless steel hardware (nuts/bolts/pins)
- Nitrogen ride suspension
- MTO/DOT approved lighting package
- LED lights with marine grade wiring

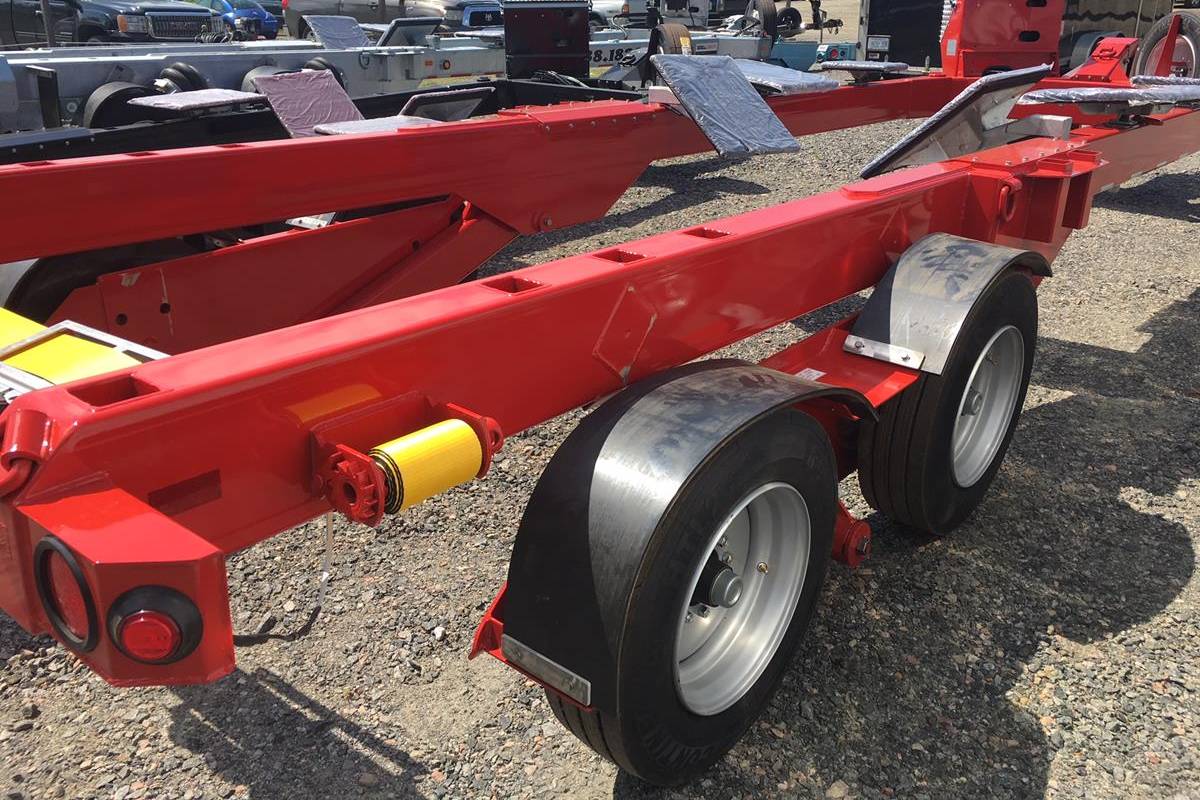

- Electric brakes and rubber fenders
- Tires: 215/75R17.5 radials (includes spare and carrier)
- Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
- Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint
- 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
